Motor
มอเตอร์ไฟฟ้าอุตสาหกรรมเป็นอุปกรณ์สำคัญในระบบขับเคลื่อนเครื่องจักร ช่วยแปลงพลังงานไฟฟ้าเป็นพลังงานกล เพื่อให้เครื่องจักรทำงานได้อย่างมีประสิทธิภาพ เหมาะสำหรับงานในโรงงานอุตสาหกรรม ระบบลำเลียง งานผลิต และงานที่ต้องการความเสถียรในการขับเคลื่อน โดยทางเรามีมอเตอร์ให้เลือกหลากหลายแบรนด์และรูปแบบการใช้งาน เช่น SIEMENS MOTOR, ABB MOTOR, Mitsubishi, HASCON MOTOR, ORANGE1 EXPLOSION PROOF MOTOR และ BONFIGLIOLI MOTOR BRAKE เพื่อรองรับความต้องการของแต่ละอุตสาหกรรมได้อย่างเหมาะสม

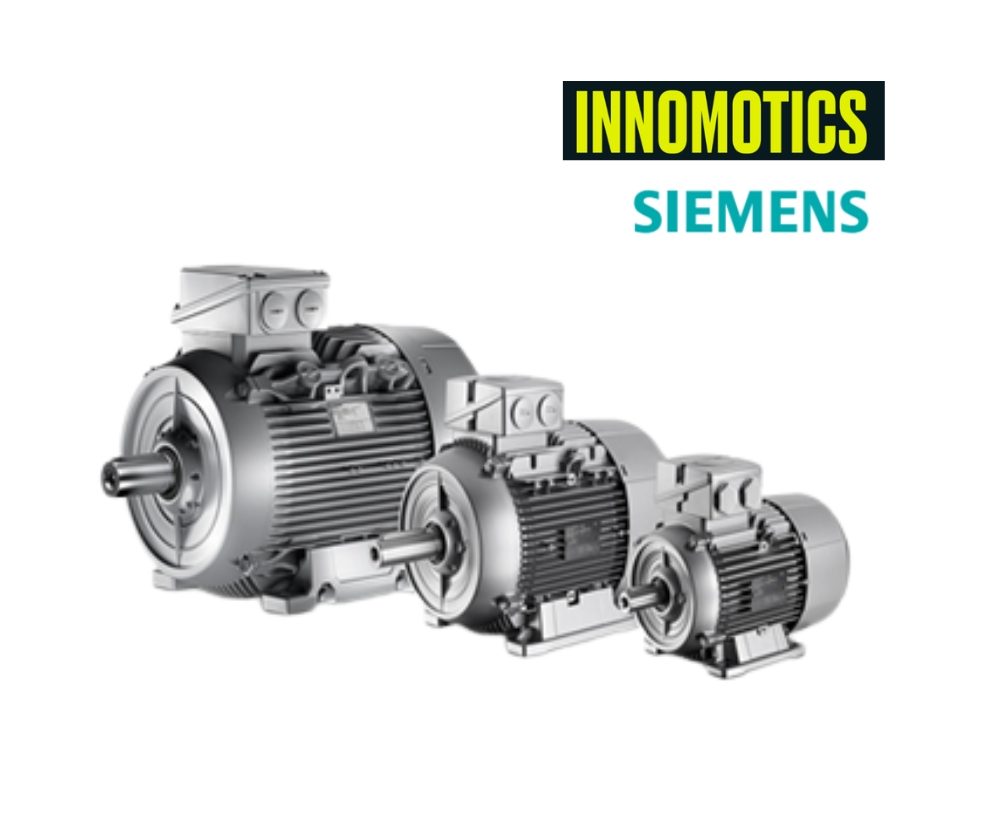

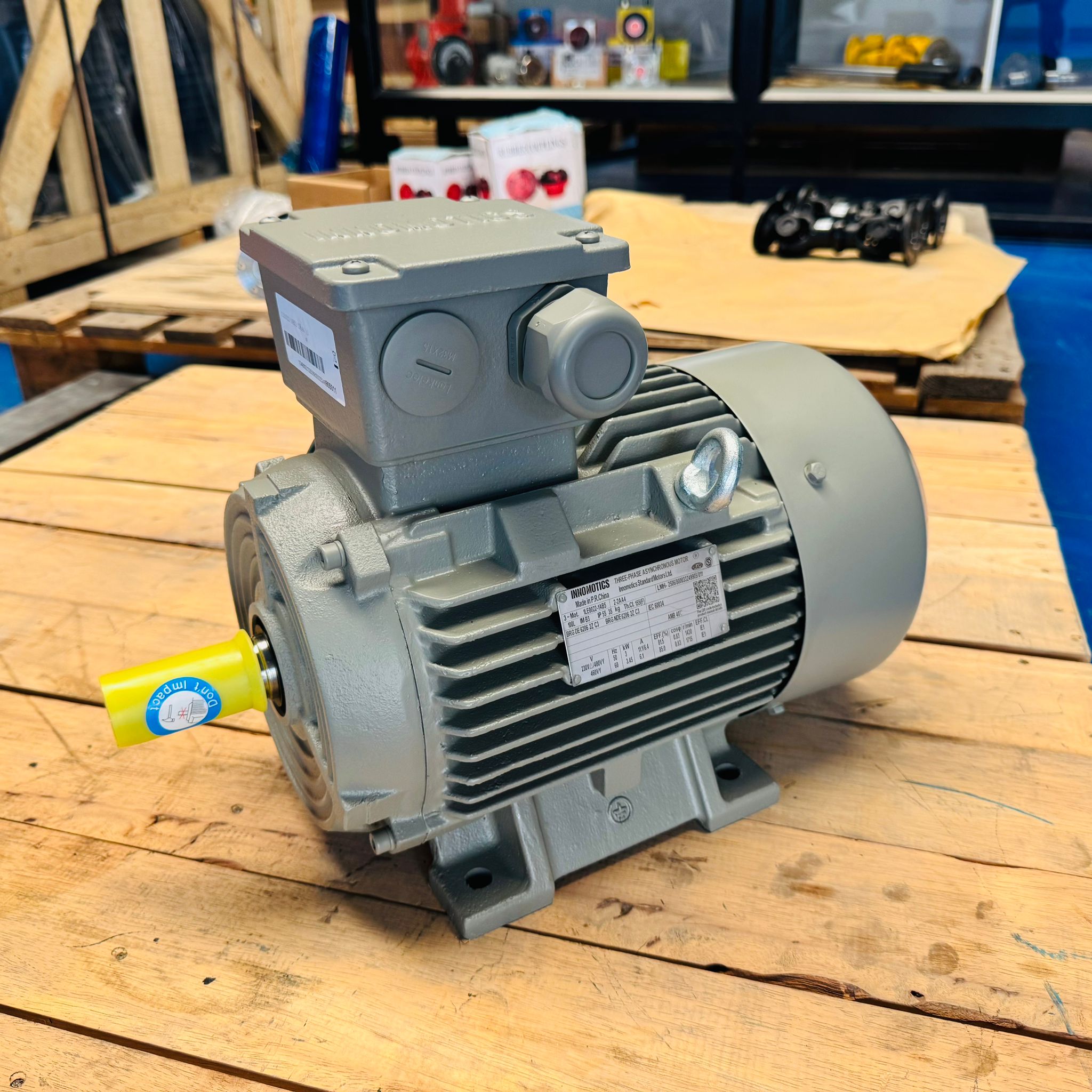

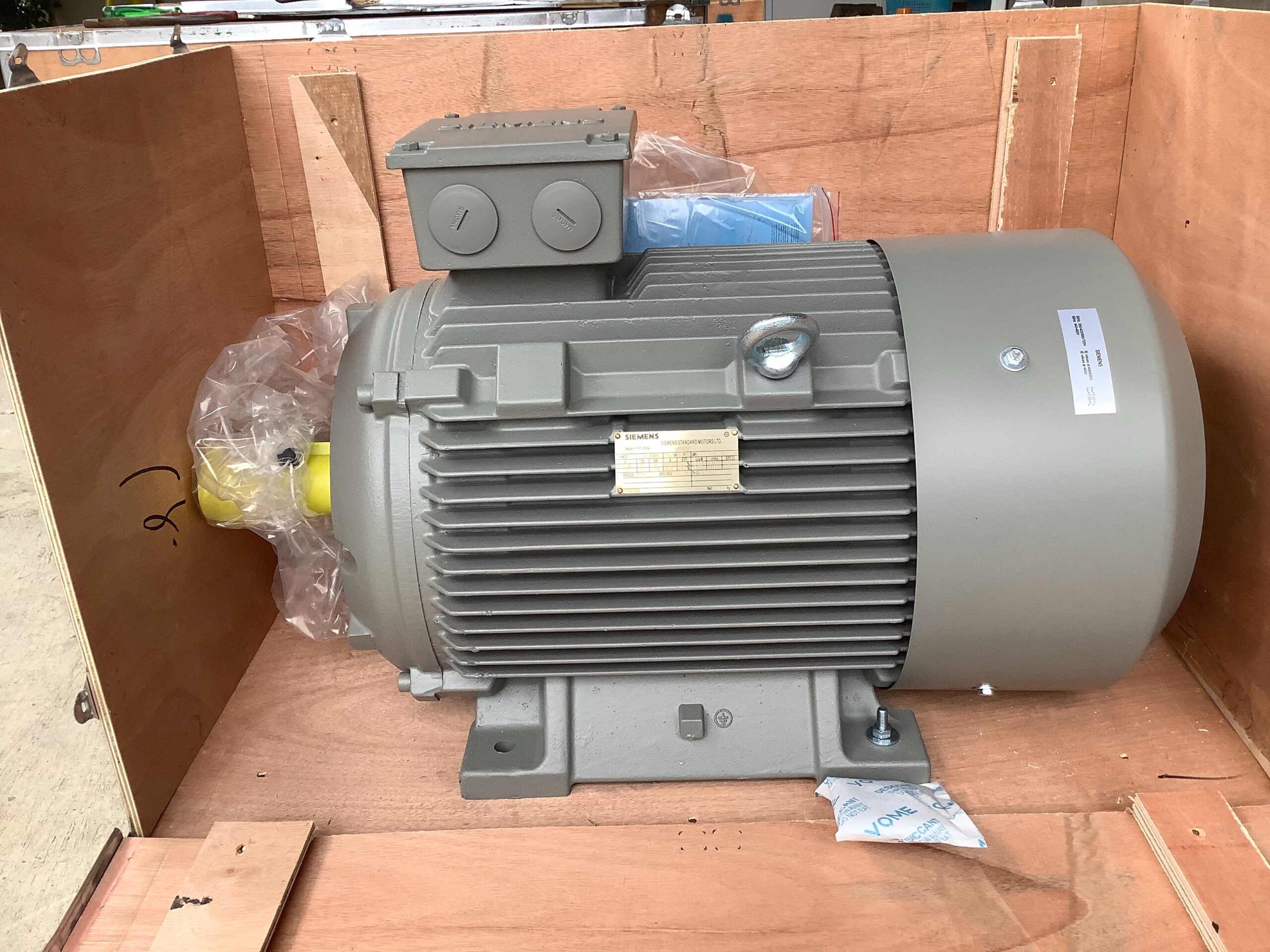

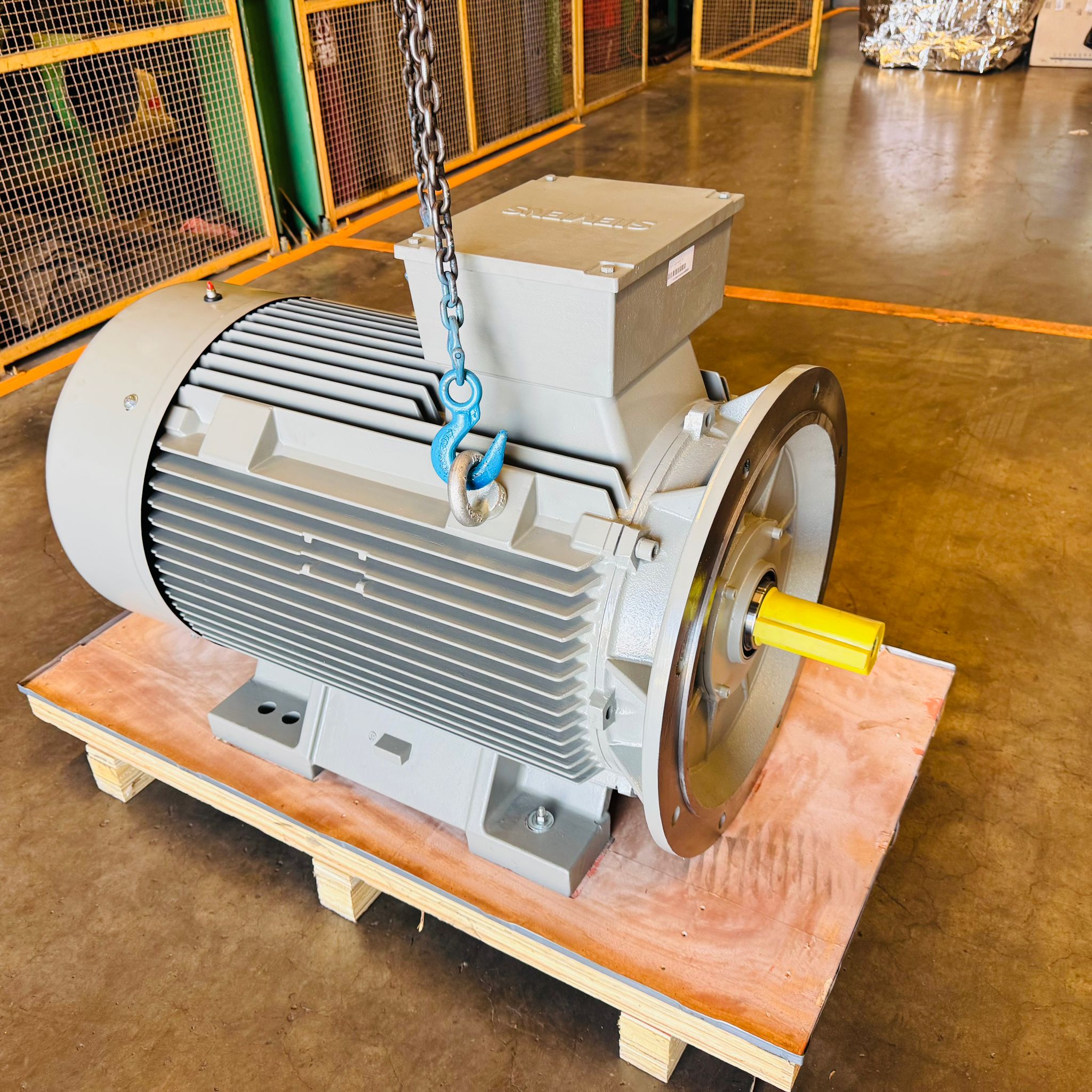

SIEMENS MOTOR
- Innomotics (Siemens) standard series electric motors for versatile industrial and manufacturing applications. Lightweight, high-efficiency 3-phase motors, ranging from IE1-IE4, premium quality, manufactured to European standards. Gear options are available for applications requiring speed control or can be modified to suit various operating environments.
- Rated speed: 2P, 4P, 6P and 8P
- Voltage: All commonly used voltages 50Hz/60Hz
- Efficiency Classes: IE1 – IE4

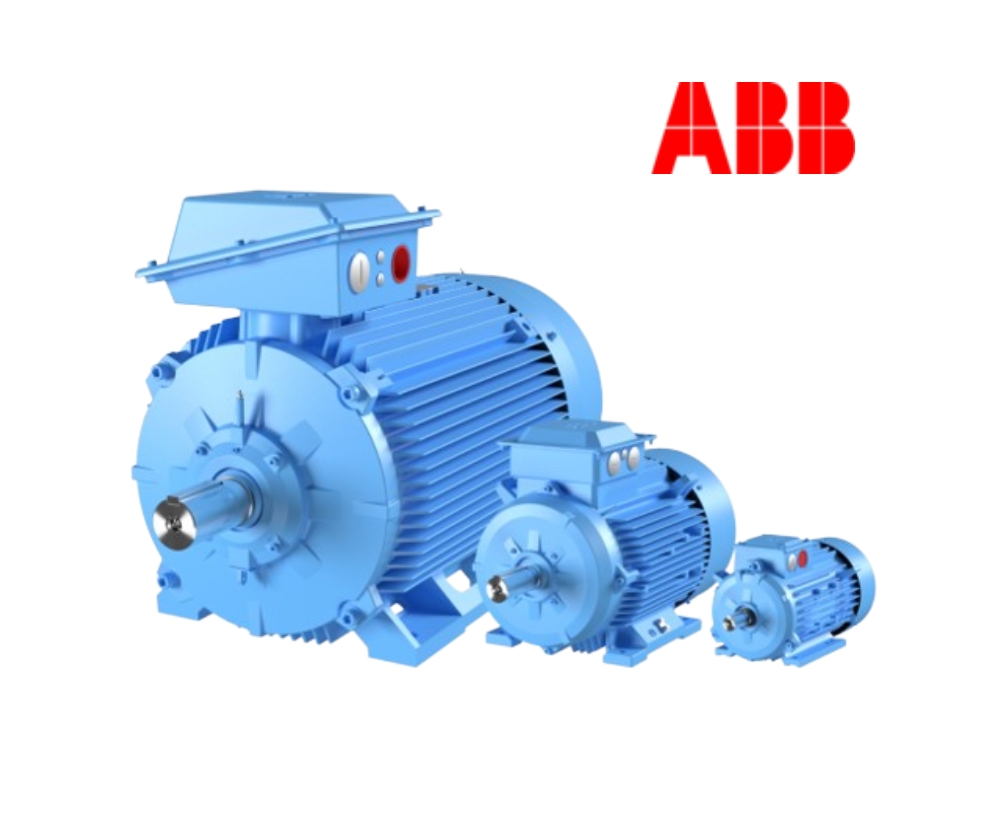

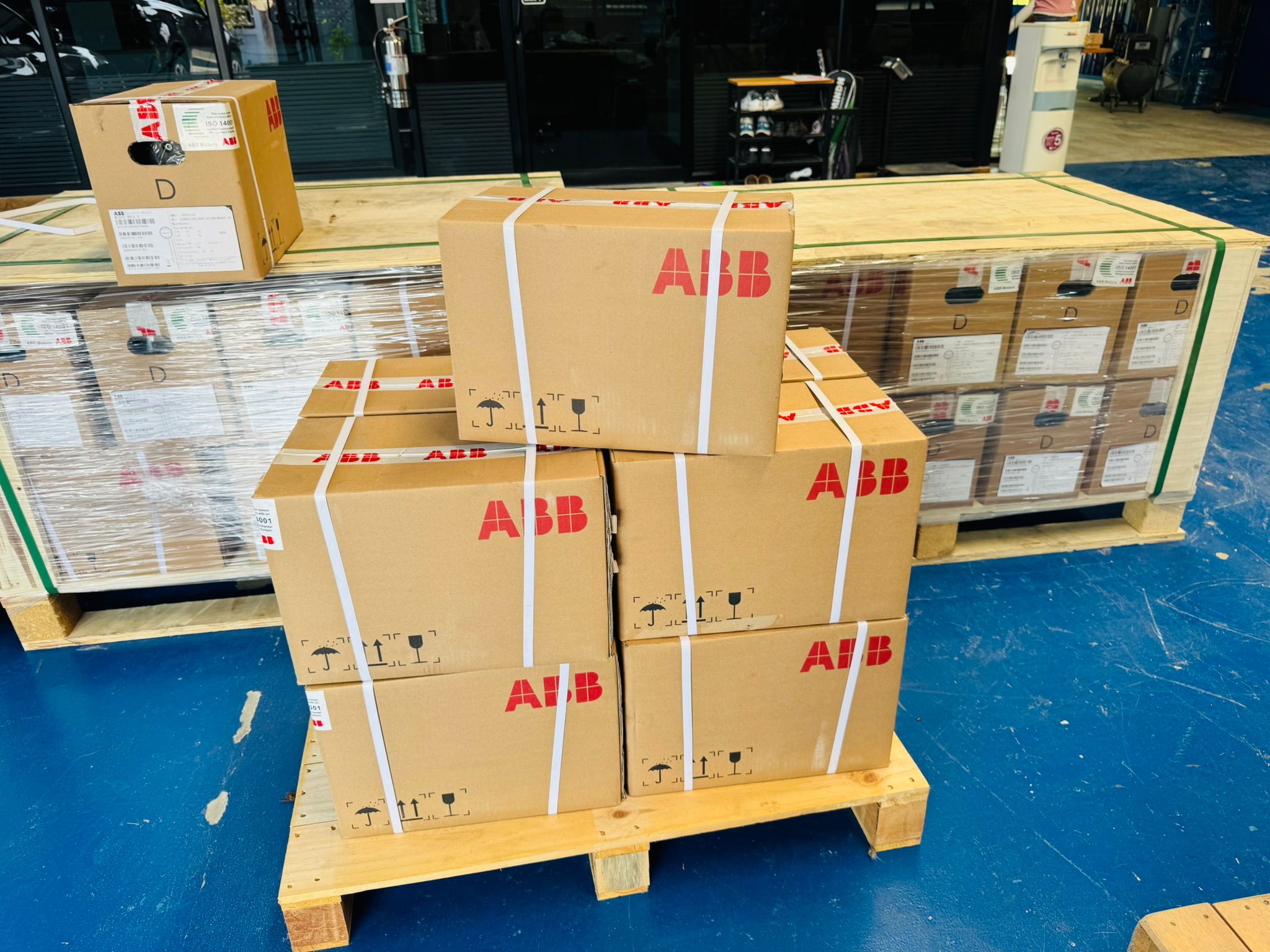

ABB MOTOR
- ABB Low voltage General performance IE2 cast iron motors Sizes 71 to 355, 0.18 to 355 kW
- ABB uses class F insulation, which, with temperature rise B, gives ABB products a 25 °C safety margin. This can be used to increase the loading for limited periods, to operate at higher ambient temperatures or altitudes, or with greater voltage and frequency tolerances. It can also be used to extend insulation. For instance, a 10 K temperature reduction will extend the insulation

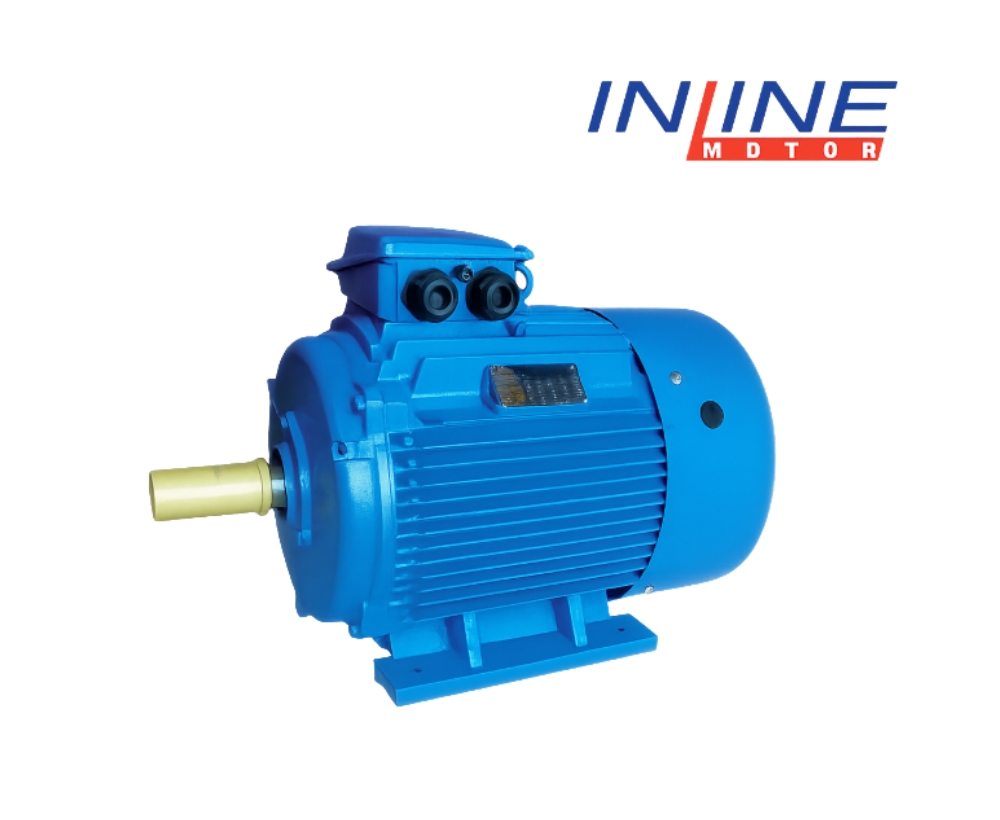

INLINE MOTOR

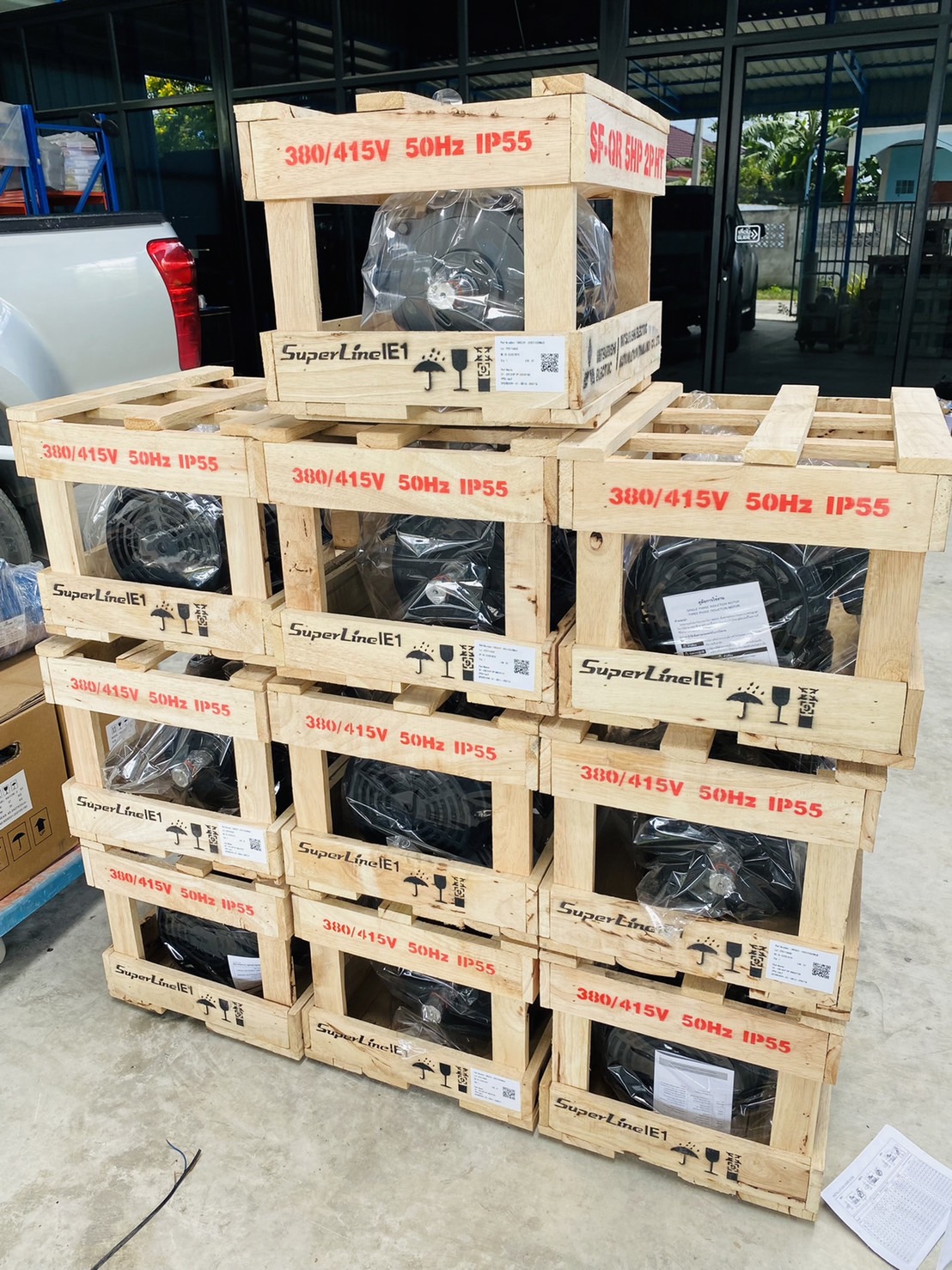

- INLINE motor with sizes ranging from 1/2 HP to 420 HP For General Purpose Application
- Motor made to IEC standards
- Induction Motor, Totally Enclosed Fan cool (TEFC), Squirrel Cage
- High Efficiency Motors (IE2) & Premium Efficiency Motors (IE3)
- Voltage Specification at frequency 50Hz / 60hz
- Degree of protection IP55 (better protected from dust and water)
- Class F insulation with temp. rise class B
- ISO9001, ISO14001 Certified

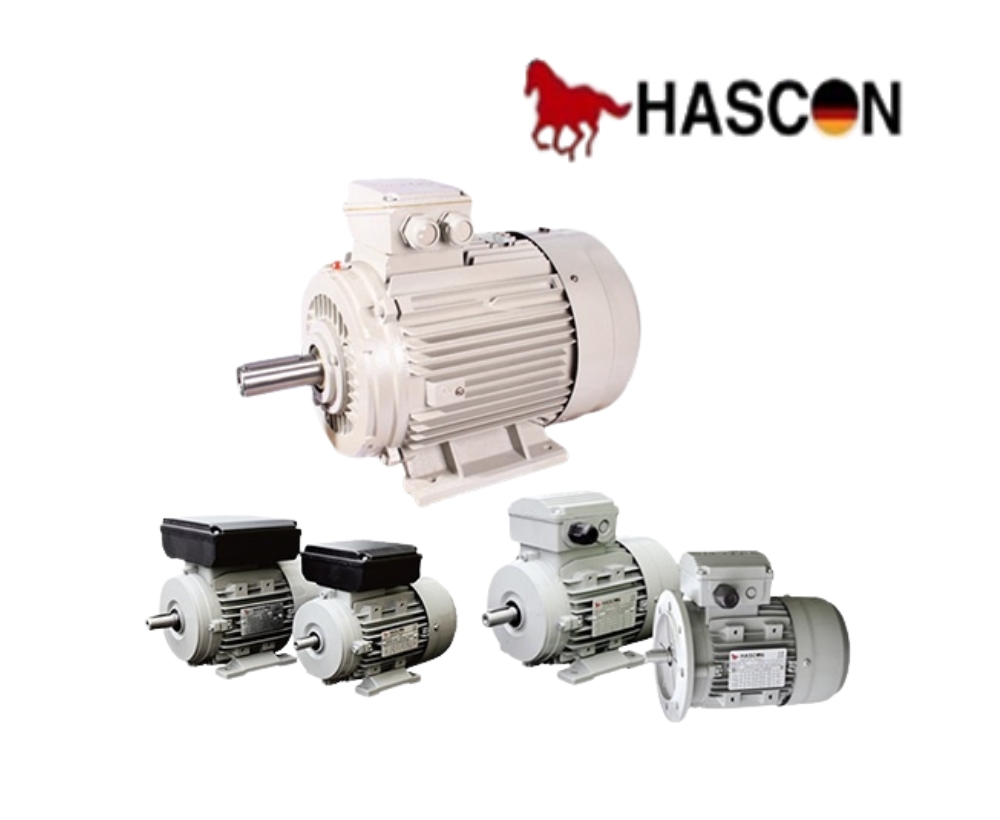

HASCON MOTOR
Hascon IE1-IE3 series high-efficiency motors feature cast iron and aluminum frames for a robust and durable construction, meeting IEC standards and IP55 protection. Available in both foot-mounted (B3) and flange-mounted (B5) configurations, in 2P, 4P, and 6P types, with sizes ranging from 0.55kW to 355 kW.

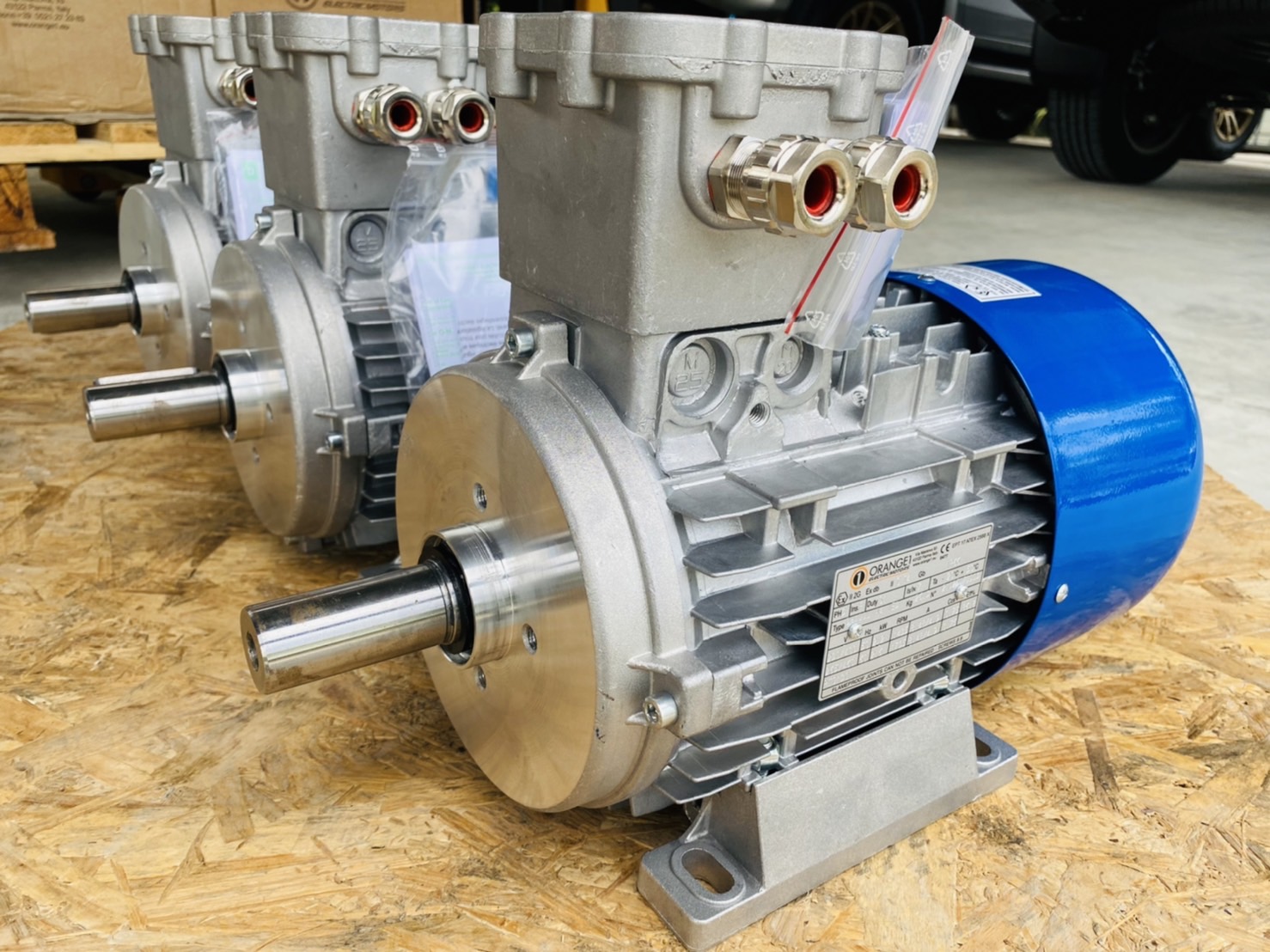

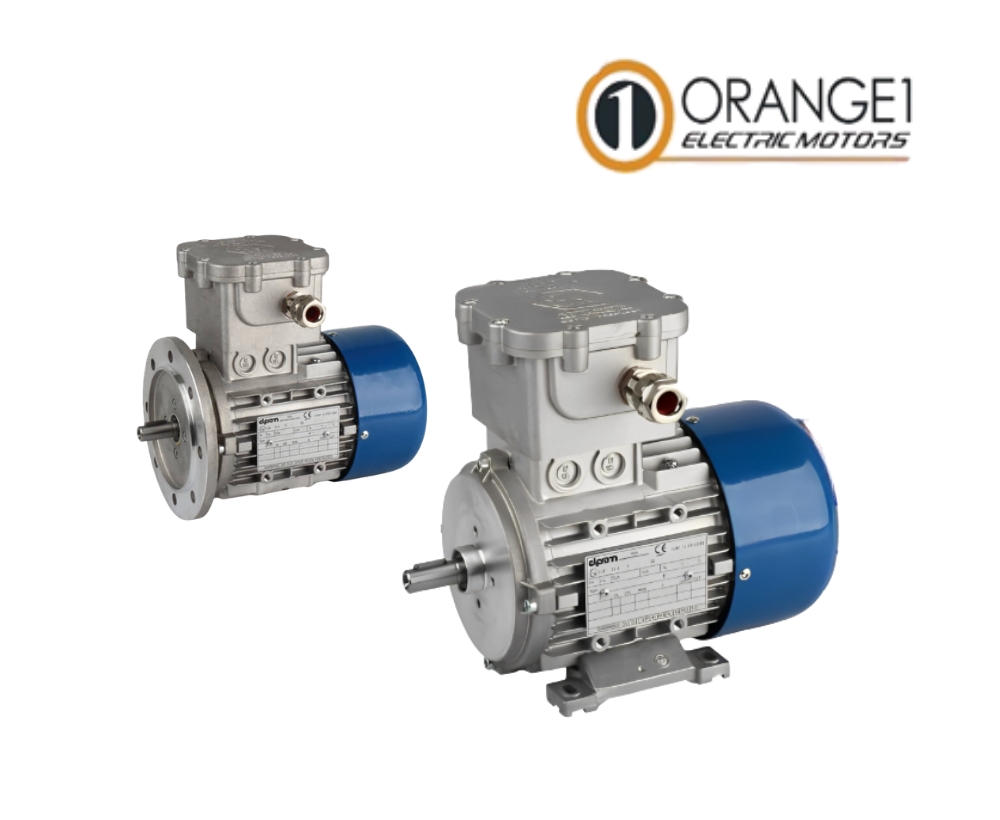

ORANGE1 Explosion Proof Motor
- ORANGE1 Explosion Proof Motor IEC Standard IE1, IE2, IE3 efficiency class
- Frequency 50 or 60 Hz Insulation class F (Class H is on request) Degree of protection IP66
- Presence of Gas : Zone 1 and Zone 2 Type of Protection : “Ex db” or “Ex dbeb”
- Gas Group : IIC, IIB and IIA Temperature Class : T3, T4, T5 (suitable also for T2, T1)
- Ambient Temperature Range : -40°C +60°C for temperature class T3, T4 and -40°C +40°C for temperature class T5

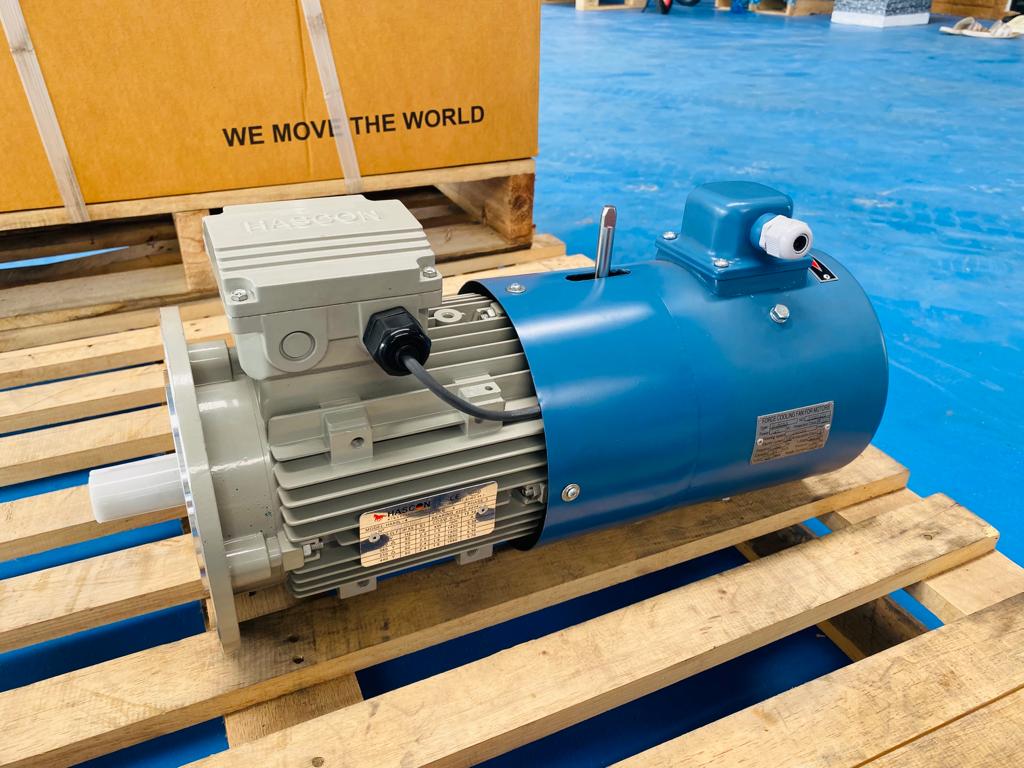

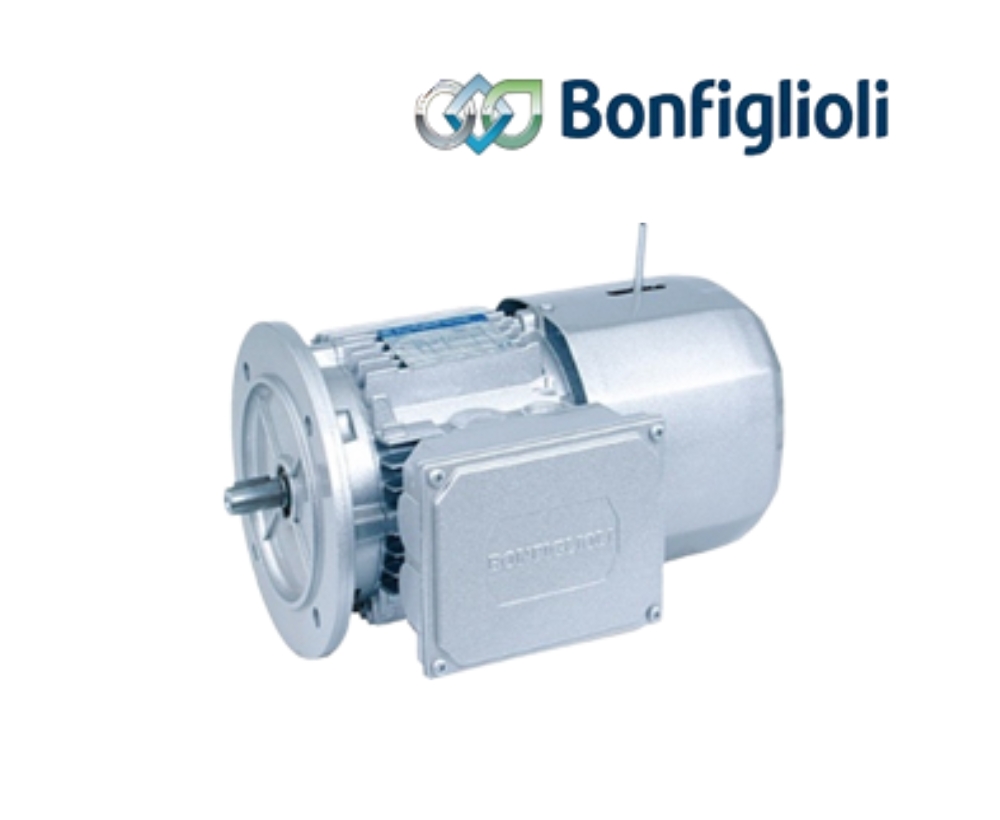

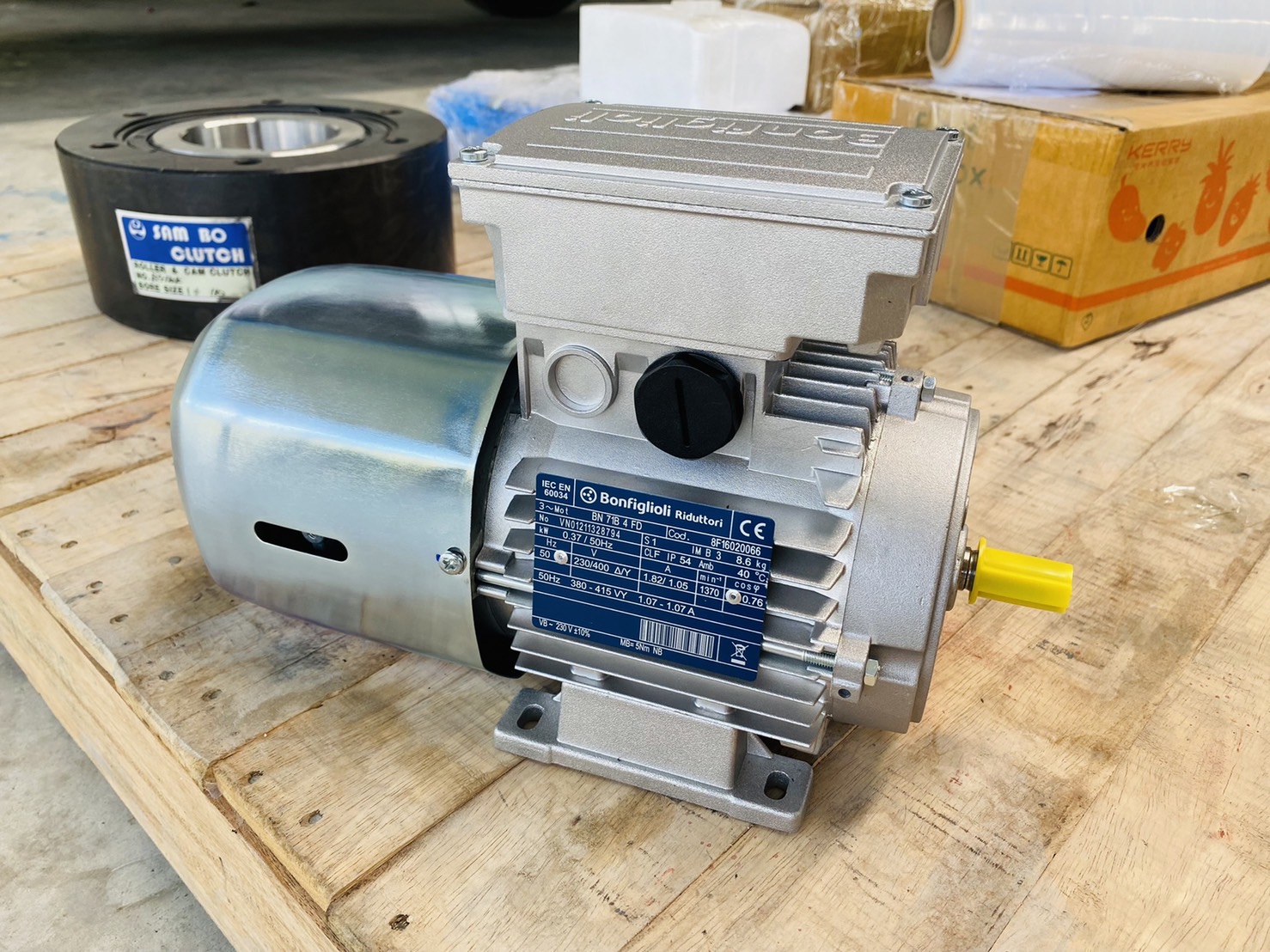

BONFIGLIOLI MOTOR BRAKE
The IEC-normalized BONFIGLIOLI motor motors comply with all the applicable international standards, including the EMC and LV Directives. They are available in the 0.06 – 30 kW range in the foot and the flange mounting version, the latter in both the IM B3 B5 and the IM B14 configuration.

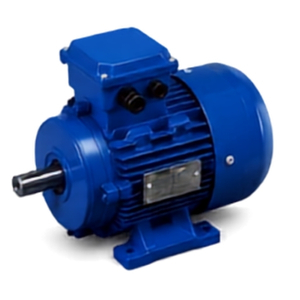

- Foot Mounted

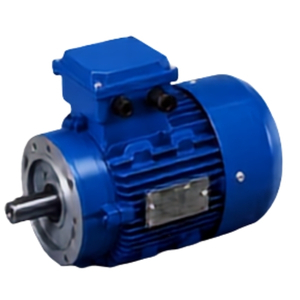

- C Face Mounted

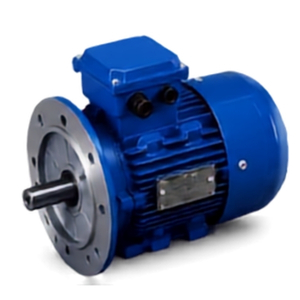

- D Flange Mounted

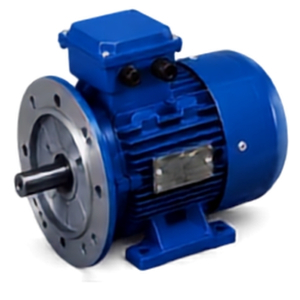

- Foot and D
Flange Mounted

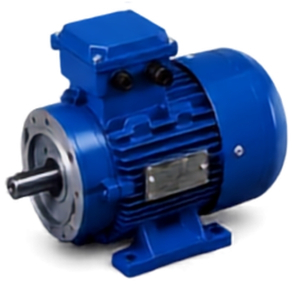

- Foot and C
Face Mounted
